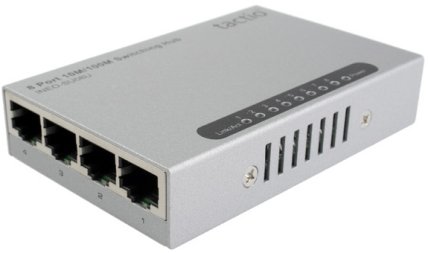

USB 10M/100M Ethernet Switching Hub

(Auszug aus der Pressemitteilung)

This USB 10M/100M Ethernet Switching Hub achieves the compact size while retaining all the functions provided in our existing 5-port/8-port switch products. Furthermore, it can be used in rooms with limited number of power outlets as it supports USB bus powered operation.



  • 5/8 port 10Base-T/100Base-TX Nway (Auto-Negotiation)
  • Complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX standards
  • Palm size with strong metal case design
  • Auto-MDI/X
  • Auto-detect of Full/Half Duplex modes in all ports
  • Broadcast storm control
  • Store & Forward switching methods
  • IEEE802.3x Flow Control for Full Duplex
  • Zero-Packet Loss Back-Pressure flow control for Half Duplex
  • Non-blocking & Non Head of Line blocking full wire speed forwarding
  • USB power support
  • Buffer Memory: 512 KByte
  • Buffer Memory: 768 KByte
  • MAC address: 1K
  • External power supply: 5V DC
  • Power consumption: 1.8 Watts (Max.) (5-port)
  • Power consumption: 3 Watts (Max.) (8-Port)
  • Status LEDs: POWER, LINK/ACT

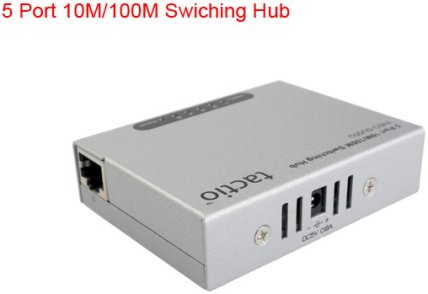

  • Dimension: 79 x 62 x 20mm (approx.) (5-port)

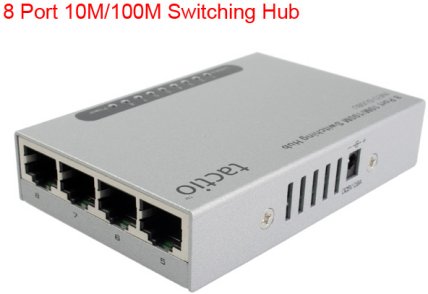

  • Dimension: 94 x 62 x 21mm (approx.) (8-port)
  • Weight: 178g (5 port without AC adapter)
  • Weight: 210g (8 port without AC adapter)

Package Contents:

  • 5 or 8 Port Ethernet 10M/100M Switching Hub
  • USB Power Cable
  • AC adapter
  • User Manual
