New NOX COOLBAY HX, Style and performance

(Auszug aus der Pressemitteilung)

Malaga, November 2008 – NOX’s new chassis is ready to support the maximum performance in your PC. It includes an extreme ventilation system with 4 fans and enough space for 9 drive bays to offer great versatility.

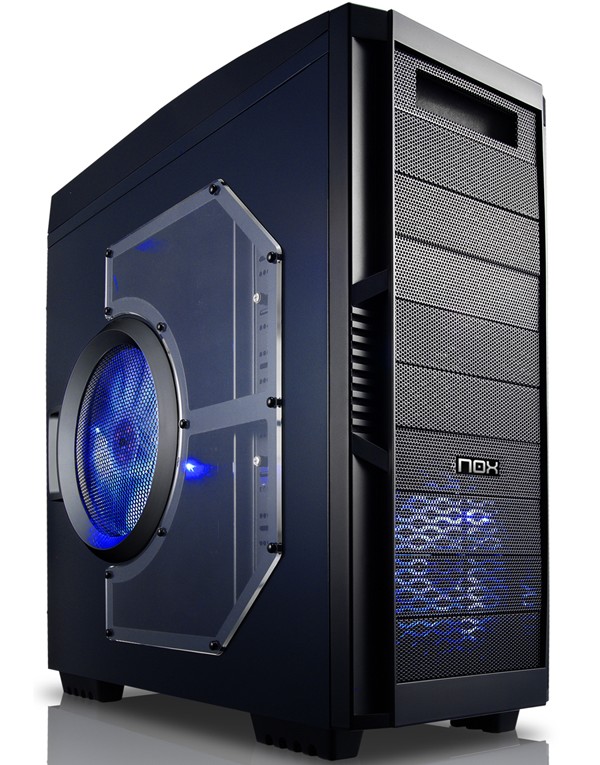

Side-door with transparent window and 200mm fan with a blue LED, and an interior finished all in black makes this NOX case unique.

NOX Coolbay HX = Style and Performance.


  • Ready for liquid cooling systems.
  • Anti-vibration foam in the HDDs mounting wholes.
  • Anti-vibration rubber in the base where the PSU is installed.
  • Fan with speed control mounted on the rear.
  • Power supply mounts at the bottom of the case (power supply not included).
  • Expansion Slots with ventilation holes.
  • Anti-slide foot stands.

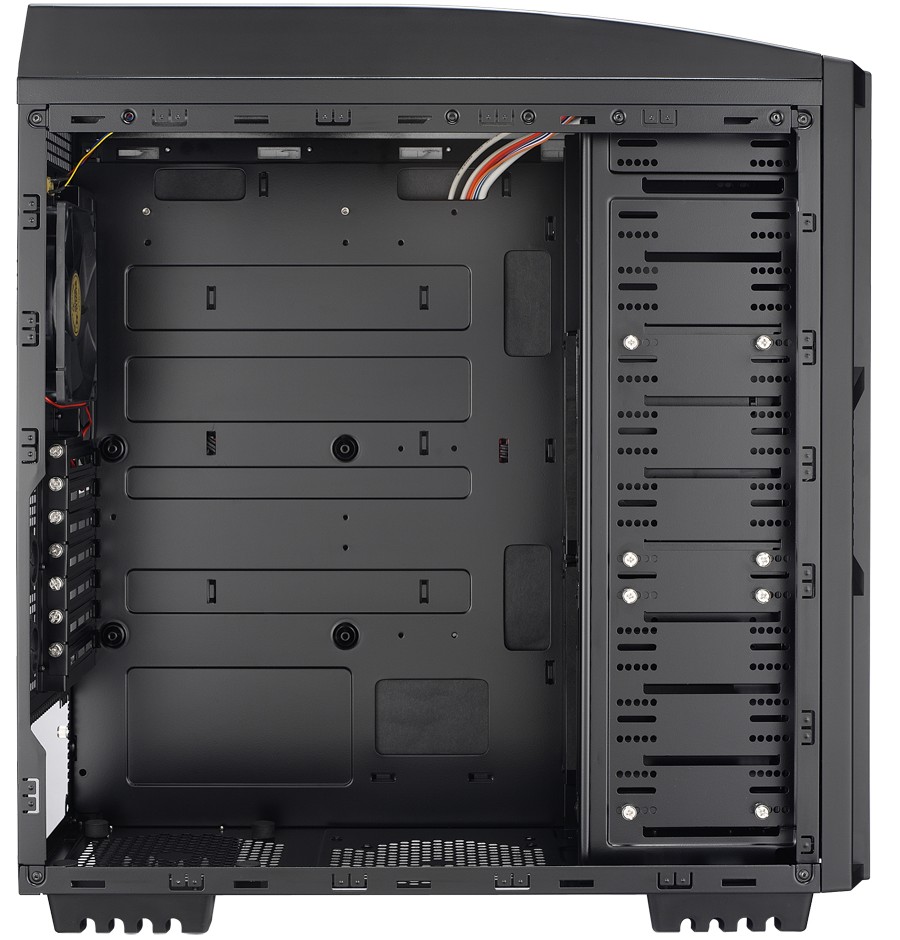

  • Stylish black interior.
  • Side-door with transparent window.


  • Mainboards Supported: ATX/MICRO ATX
  • Housing: SECC Steel
  • Drive Bays:
    • External: 9 x 5.25”, 1 x 3.5”
    • Internal: 4 x 3.5”
  • Air Cooling Set-up:
    • Frontal Fan: 1 x 140 mm with Blue LED
    • Rear Fan: 1 x 120 mm
    • Top Fan: 1 x 200 mm
    • Lateral Fan: 1 x 200 mm with Blue LED
    • Bottom Fan: 1 x 120/140 mm (Option – Not Included)
    • Ventilation area in the top of the chassis for improved airflow
  • Expansion Slots: 7
  • Top mounted I/O ports: 3 x USB, eSATA, audio and microphone
  • Chassis Dimensions: 500(H) x 205 (W) x 545 (D) mm
  • Weight: 9.4 Kg
