New 3DMark Mesh Shader test (DirectX 12 Ultimate)

(Auszug aus der Pressemitteilung)

DirectX 12 Ultimate adds powerful new features and capabilities to DirectX 12 including DirectX Raytracing Tier 1.1, Mesh Shaders, Sampler Feedback, and Variable Rate Shading (VRS).


After DirectX 12 Ultimate was announced, we started adding new tests to 3DMark to show how games can benefit from these new features.

Our latest addition is the 3DMark Mesh Shader feature test, a new test that shows how game developers can boost frame rates by using mesh shaders in the graphics pipeline.

What is a mesh shader?

Mesh shaders introduce a new approach to geometry processing that simplifies the graphics pipeline while also giving developers more flexibility and control.

In 3D graphics, a mesh is the set of vertices, edges and faces that define the shape of an object. In current graphics pipelines, all the geometry data in a mesh must be processed sequentially before any further steps can be taken. This can be a significant performance bottleneck.

Mesh shaders replace the old approach with a new model that brings the power, flexibility and control of a compute programming model to the geometry pipeline.

Mesh shaders can process small sections of a mesh, called meshlets, in parallel with a much greater degree of flexibility and control.

Amplification shaders, another new part of the mesh shader pipeline, are especially useful for culling, as they can efficiently determine which meshlets are visible before shading. An amplification shader can cull nonvisible meshlets far more efficiently than the traditional methods.

You can read more about mesh shaders on the Microsoft DirectX Developer Blog and in the DirectX Functional Spec.

Test mesh shader performance with 3DMark

The 3DMark Mesh Shader feature test shows how game engines can improve performance by using the mesh shader pipeline to efficiently cull geometry that is not visible to the camera.

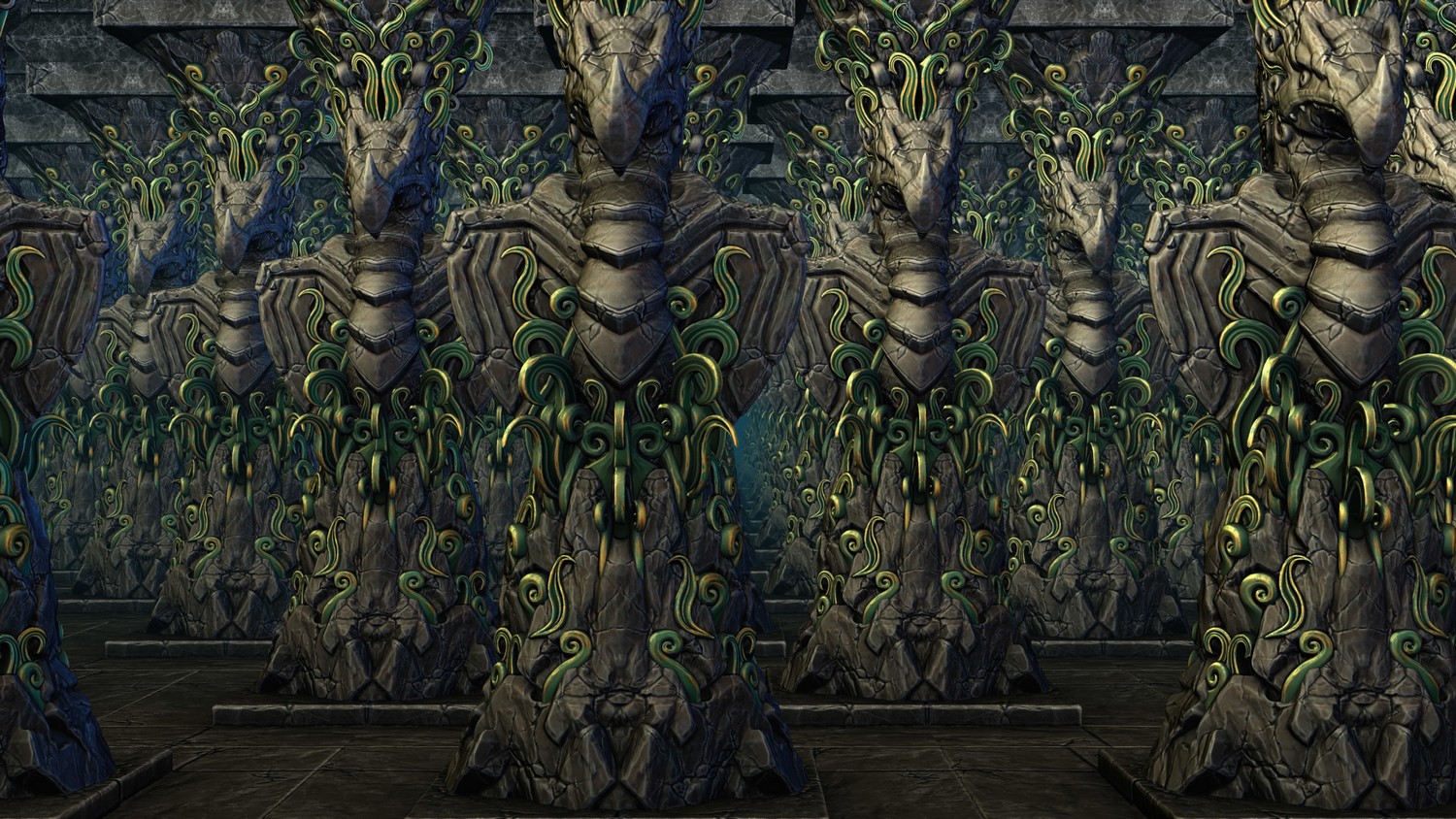

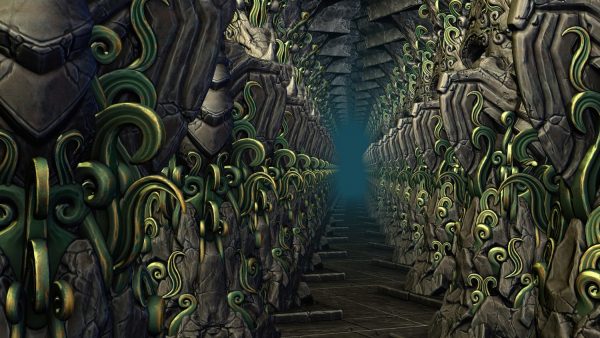

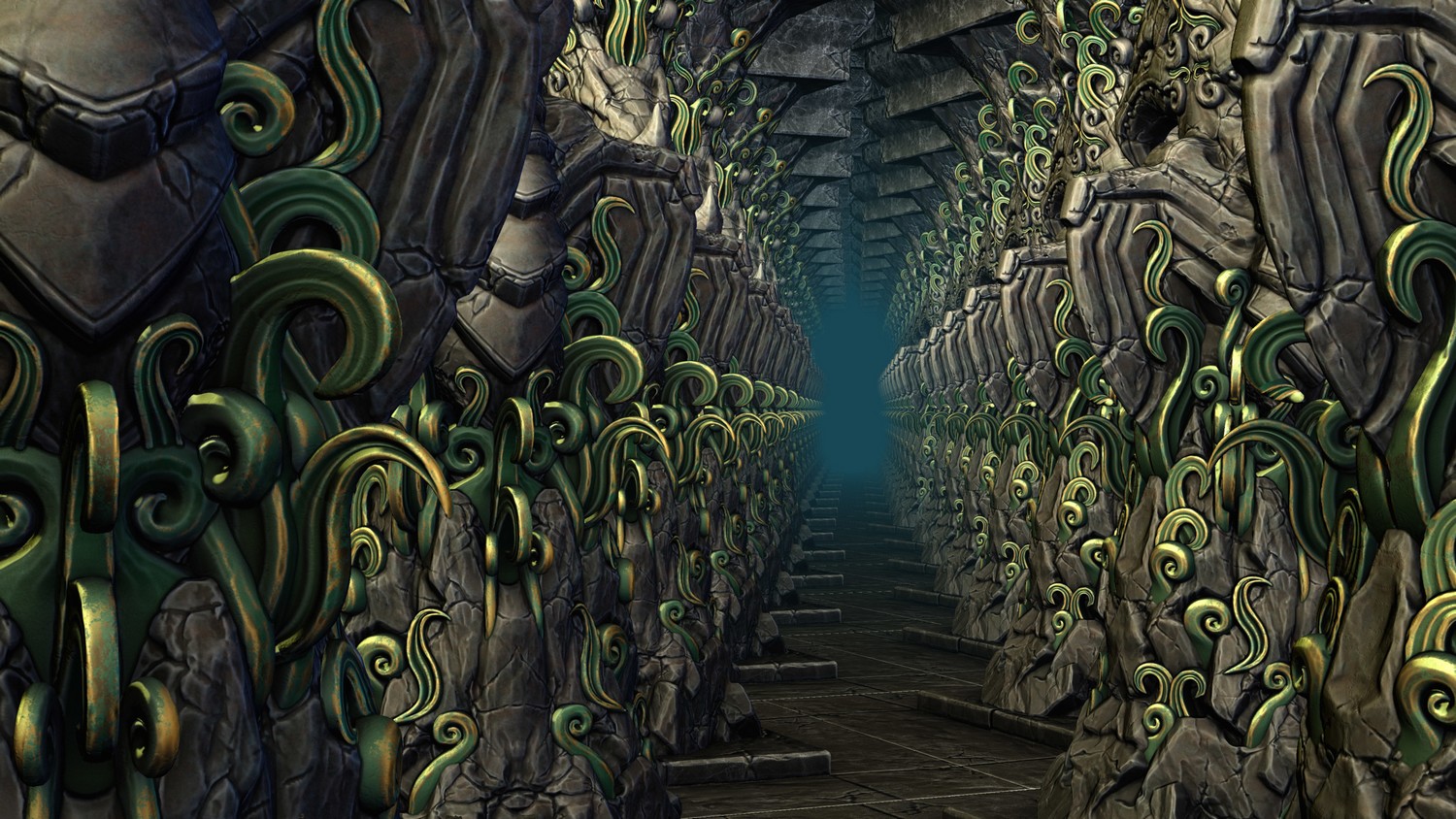

The test scene is a hall containing many rows of highly detailed, carved pillars. As the camera moves through the scene, the pillars in the foreground block the view of those further back.

The test runs in two passes. The first pass uses a traditional approach to geometry culling to provide a performance baseline. The second pass uses mesh shaders to efficiently cull hidden meshlets.

The result of the test is the average frame rate for each pass and the difference between the two expressed as a percentage. You can read more about the test in the 3DMark user guide.

Interactive mode

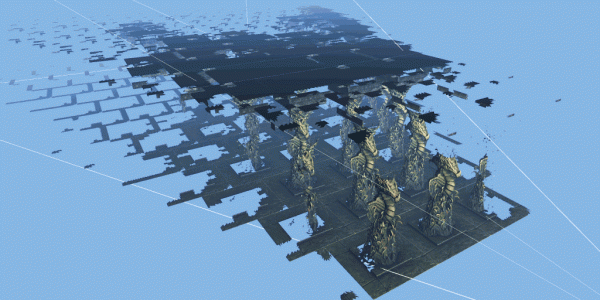

The 3DMark Mesh Shader feature test includes an interactive mode that helps you visualize the benefits of using mesh shaders. You can pause and jump to different parts of the timeline and change settings in real-time. Use visualizer options to highlight meshlets or see the level of detail (LOD) used for each meshlet.

Experience DirectX 12 Ultimate with 3DMark

DirectX 12 Ultimate adds powerful new features and capabilities to DirectX 12. These features enable game developers to create ever more realistic graphics while also improving performance and frame rates.

3DMark has a dedicated test for each of the new features in DirectX 12 Ultimate:

3DMark DirectX Raytracing feature test
3DMark Mesh Shader feature test
3DMark VRS feature test
3DMark Sampler Feedback feature test (coming later this year)

As well as measuring performance, each of these tests also has an interactive mode that lets you experiment with different settings to see the effect on image quality and performance.

You can read more about DirectX 12 Ultimate on the Microsoft DirectX Developer blog.

Available now

The Mesh Shader feature test is available today as a free update for 3DMark Advanced Edition. From now until February 15, 3DMark is 85% off, only $4.49 (USD), when you buy it from Steam.

In 3DMark Professional Edition, the Mesh Shader feature test is available as a free update for customers with a valid annual license.


The 3DMark Mesh Shader feature test requires Windows 10 version 2004 or later and a graphics card with drivers that support Microsoft DirectX 12 Ultimate. For AMD GPUs, we recommend installing the latest Radeon Adrenalin Edition 21.2.2 drivers.
