Sabrent Thunderbolt 4 Docking Station with Monitor Desk Mount (DS-T4WA)

(Auszug aus der Pressemitteilung)

Sabrent Thunderbolt 4 Docking Station with Monitor Desk Mount, Gas-Lift Arm, TB4, 4 USB Ports, UHS-II Card Reader, Gigabit Ethernet, HDMI 2.1, DisplayPort 1.4, 8K@60Hz/4K@144Hz Support, VESA Mount for Monitors up to 32”, 22lbs (DS-T4WA)

Get the benefits of cutting-edge Thunderbolt 4 technology in a universal docking station that conveniently mounts to your desk, enhanced with a gas-lift arm for one or two (with SB-DSAM) monitors. The Sabrent Thunderbolt 4 Docking Station with Monitor Desk Mount (DS-T4WA) docking station connects through Thunderbolt 4 (TB4) to deliver a TB4 downstream port as well as four USB ports – two 10Gbps (USB 3.2 Gen 2×1) USB-C ports, one 10Gbps USB-A port, and one 5Gbps (USB 3.2 Gen 1×1) USB-A port – to host a wide range of devices. Also built-in is a UHS-II (312MBps) microSD/SD card reader, a 3.5” audio in/out port, and Gigabit Ethernet (1GbE) for fast and reliable wired network connectivity. Dock and expand with ease.

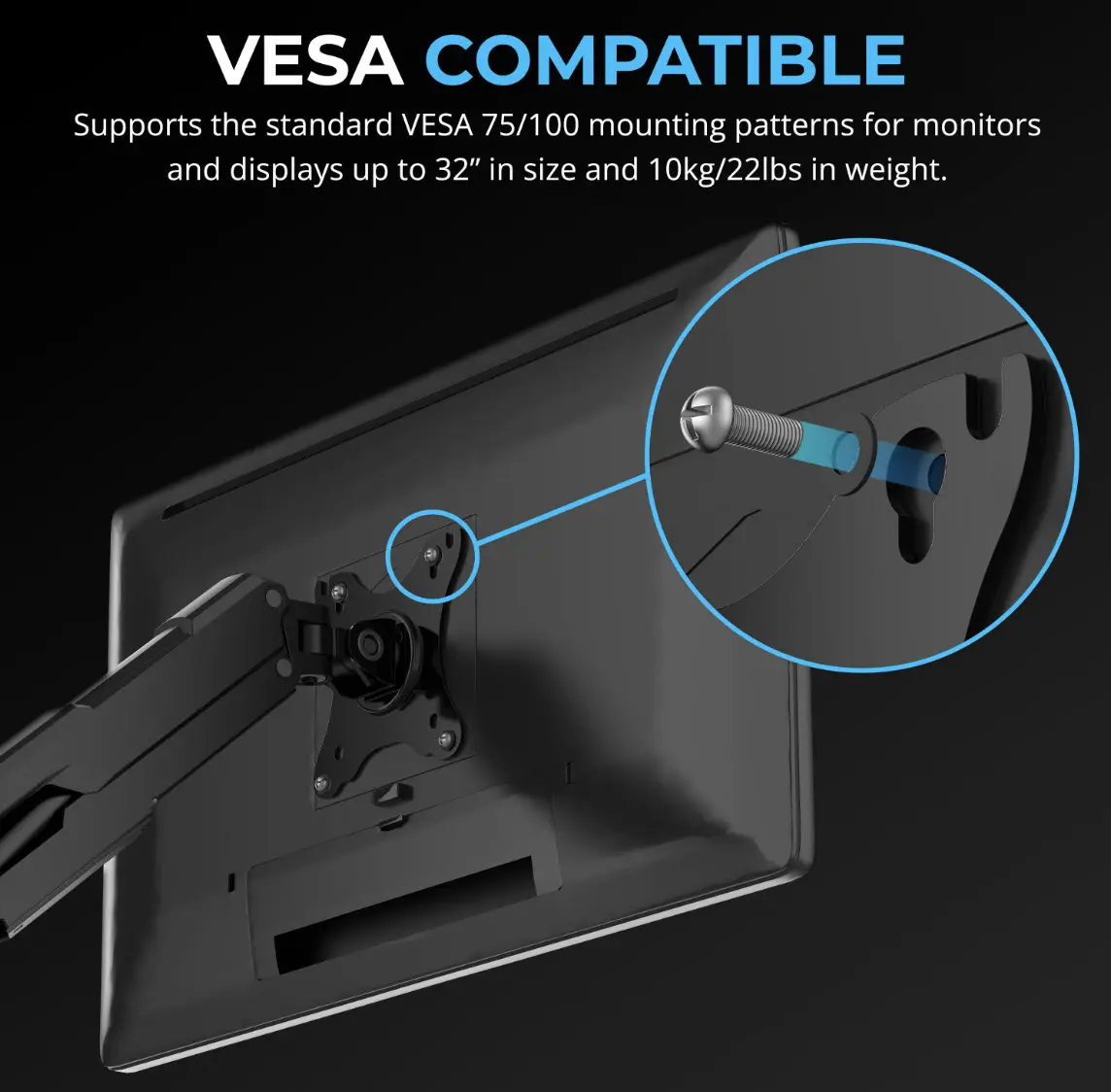

Quickly and conveniently configure your displays to match your work environment. Combine the station with one to three monitors (see note) with output up to 8K@30Hz (DP/HDMI) or 8K@60Hz/4K@144Hz (TB4) singly and 4K@60Hz (DSC) simultaneously in extended or mirrored display modes. The desired displays may be connected via the HDMI 2.1, DisplayPort 1.4, and TB4 ports. The single arm on this mount, or dual arms with our Upgrade Kit (SB-DSAM), support the standard VESA 75/100 mounting patterns for monitors and displays up to 32” in size and 10kg/22lbs in weight. The gas-lift controls vertical positioning from 0-650mm and the arm plate is capable of 360-degree swivel, 90- to -45-degree tilt, and +/- 90-degree rotation for ultimate flexibility.

Note: The use of two or three monitors, as well as extended mode, depends on the host hardware. Apple M1, M2, and M3 silicon only support one monitor. MST is required for two or more monitors. Windows is required for three monitors, and both Apple and Linux systems must use the TB4 port for at least one display output in order to engage dual extended mode.

TB4 Station And Mount:

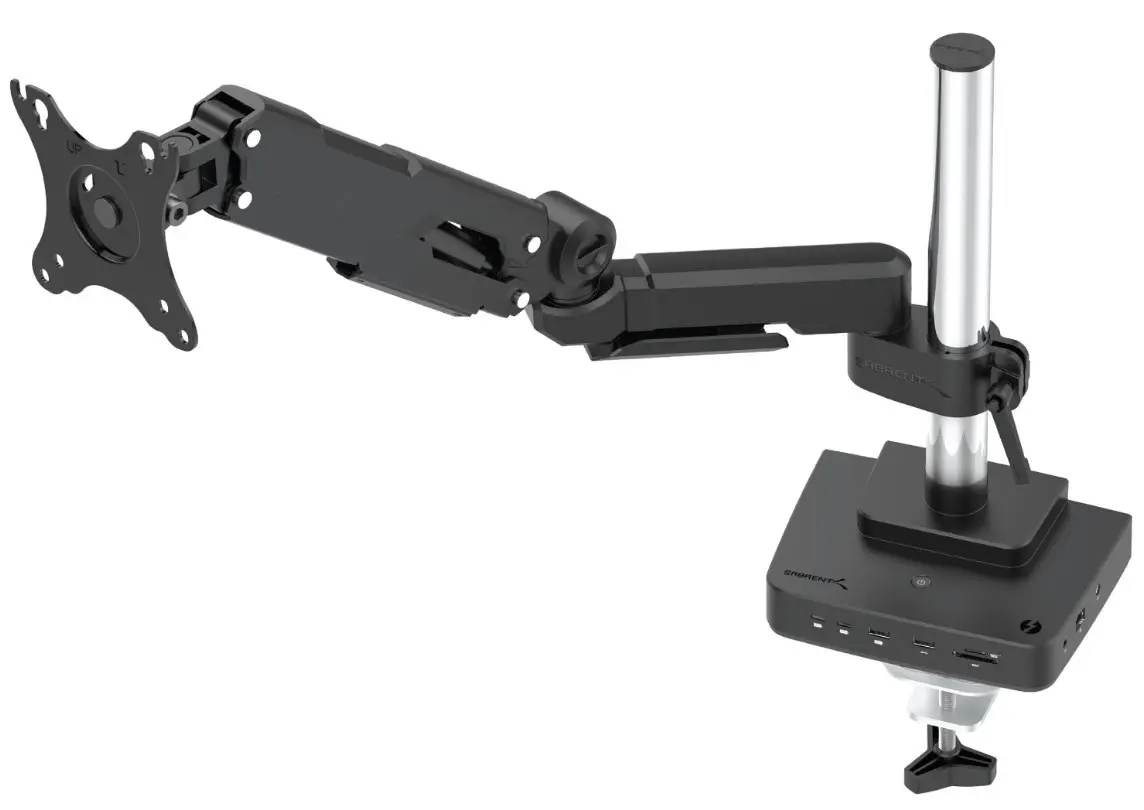

The Sabrent Thunderbolt 4 Docking Station with Monitor Desk Mount combines the utility of a comprehensive docking station with the convenience of a flexible gas-lift monitor desk mount with one or two (SB-DSAM) displays.

Bring The Thunder:

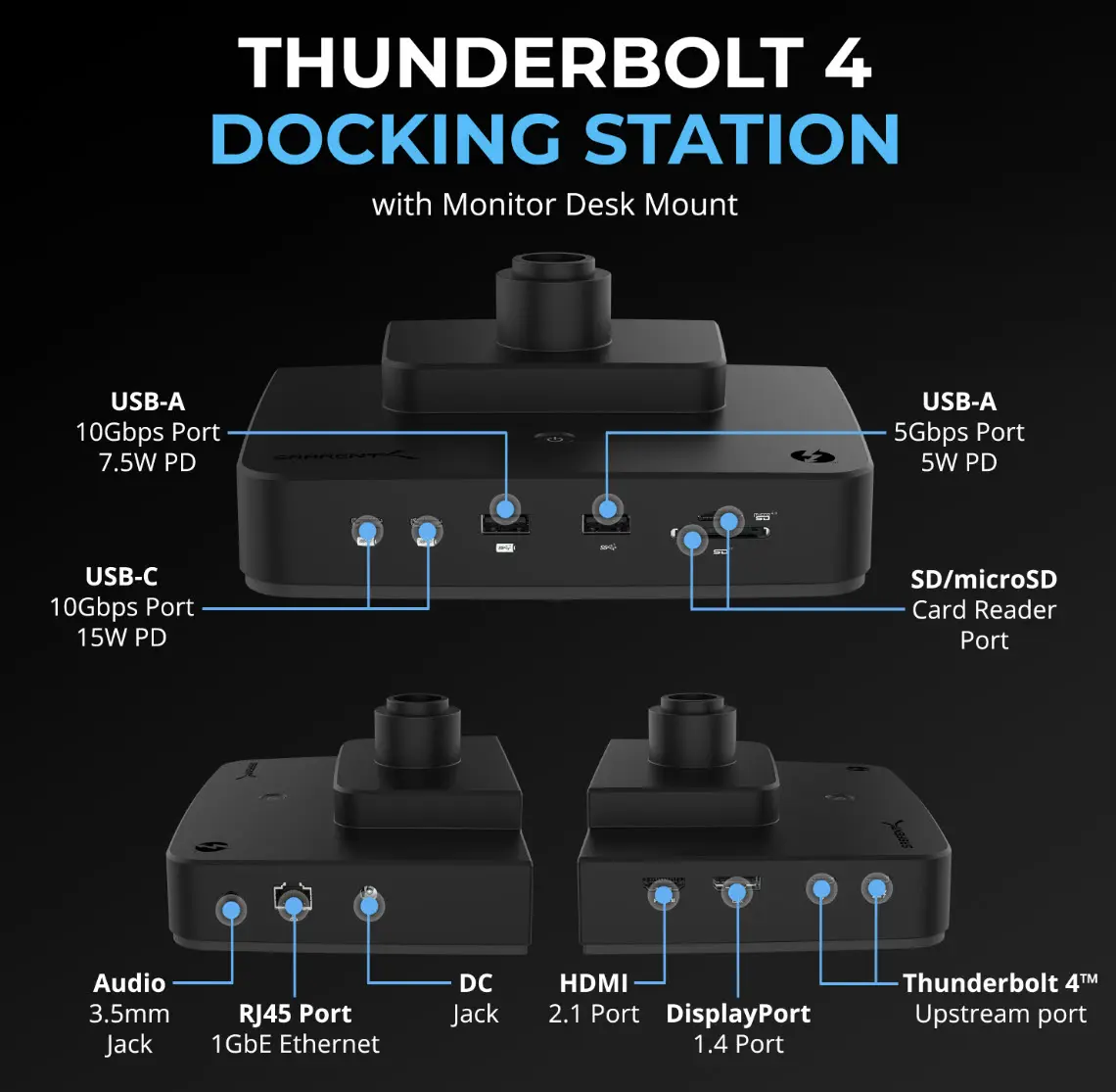

This cutting-edge docking station connects upstream through Thunderbolt 4 with a TB4 port downstream for the latest devices. Transfer at up to 40Gbps through a single cable. Power Delivery (PD3.0) is also supported at up to 60W.

USB And Me:

Thunderbolt is only the start. The DS-T4WA has three 10Gbps (USB 3.2 Gen 2×1) ports, 2x USB-C/1x USB-A, with up to 5V/3A charging for high-power devices. The single 5Gbps (Gen 1×1) USB-A port is useful for input devices and accessories.

Display Wide:

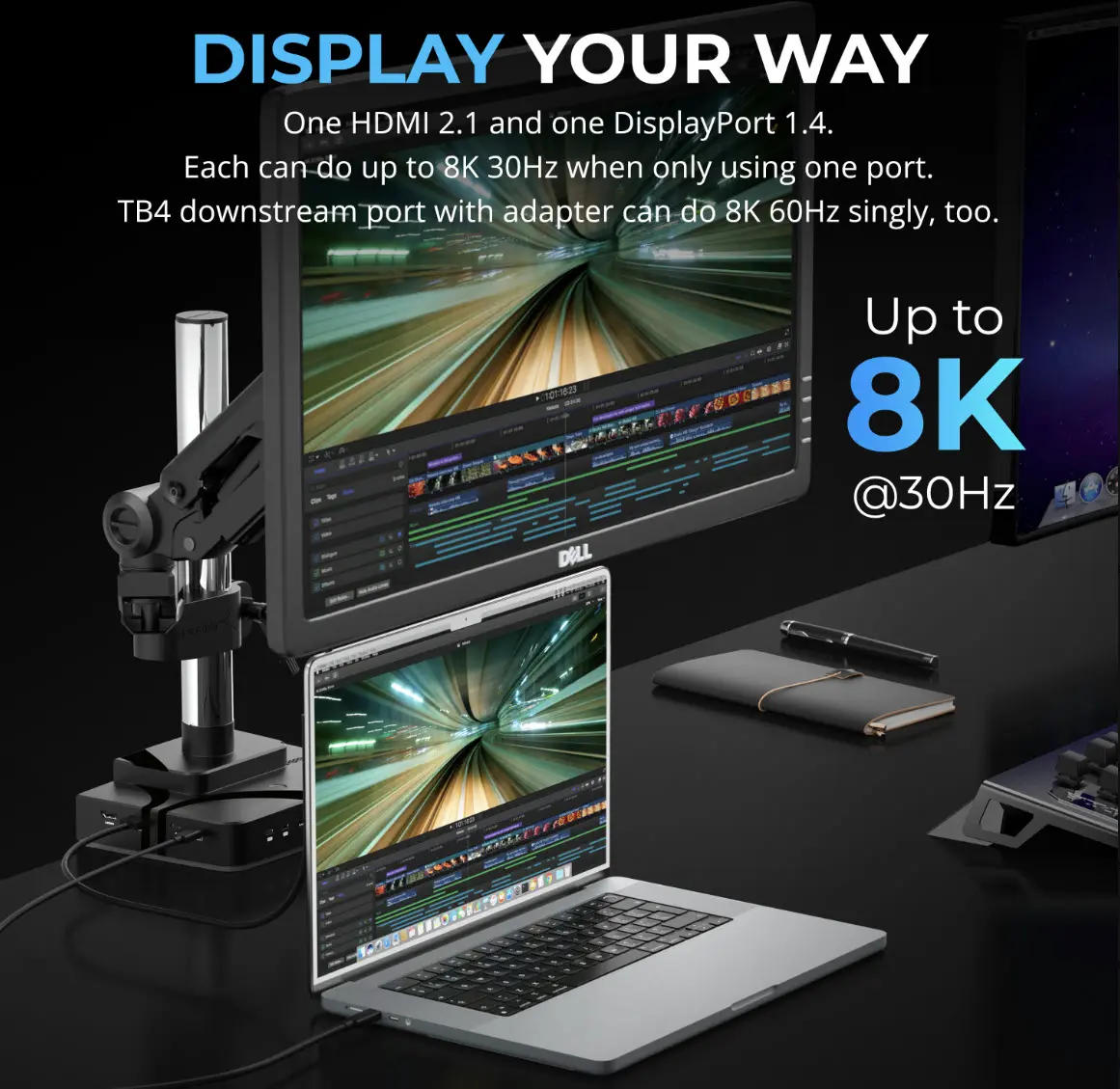

Output to your displays with DP 1.4 and HDMI 2.1 ports at up to 8K@30Hz or the TB4 port at up to 8K@60Hz/4K@144Hz (DSC) with HDR & HDCP2.3 support. Dual and triple (Windows) display output at up to 4K@60Hz is possible with MST hosts.

There’s More:

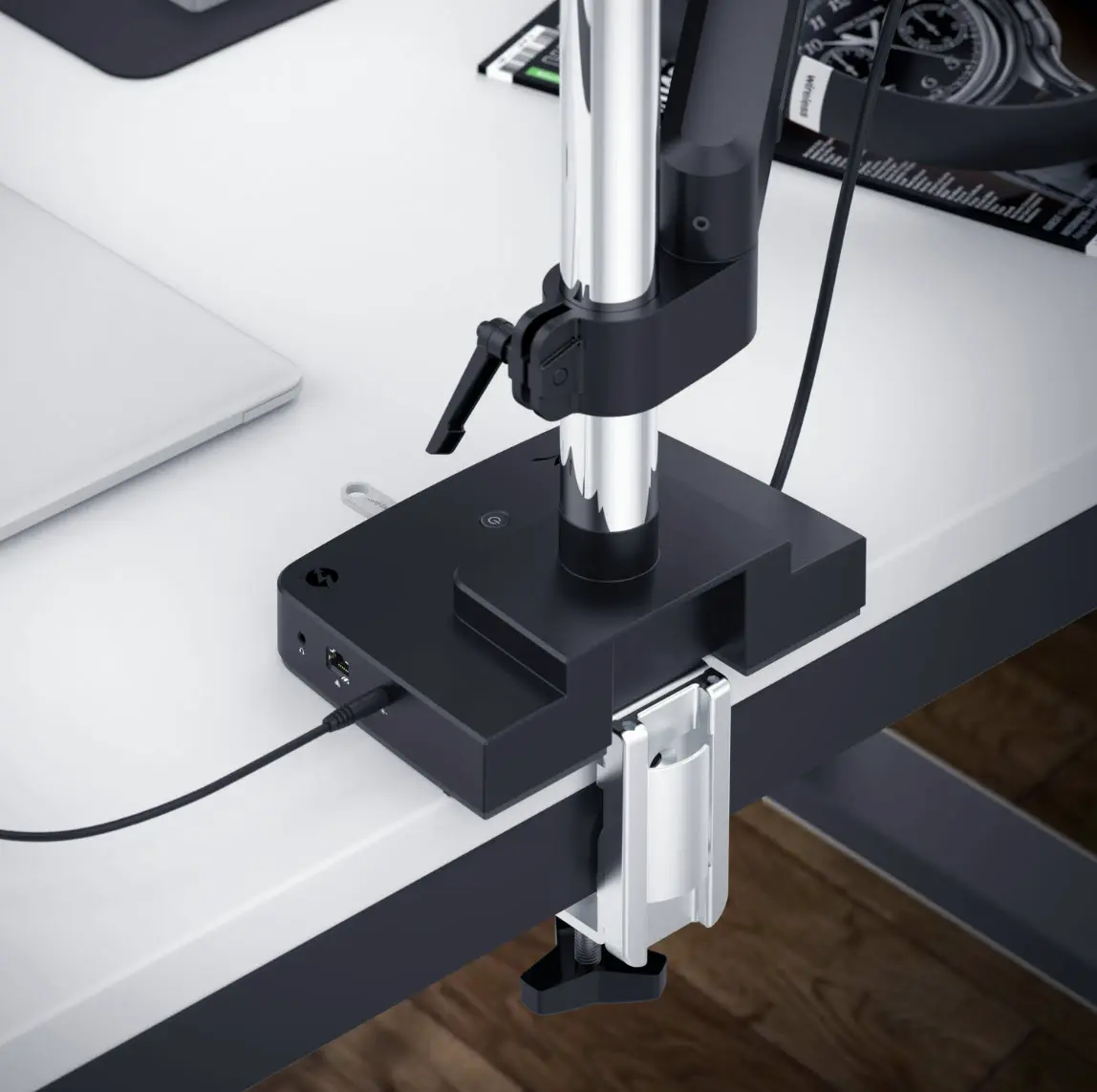

Network reliably at speed with the 1GbE RJ45 port at up to 1000Mbps. Manage your content with the fast UHS-II (312MBps) dual microSD/SD card reader. Plus, get your audio fix by plugging into the 3.5mm port for audio input or output.

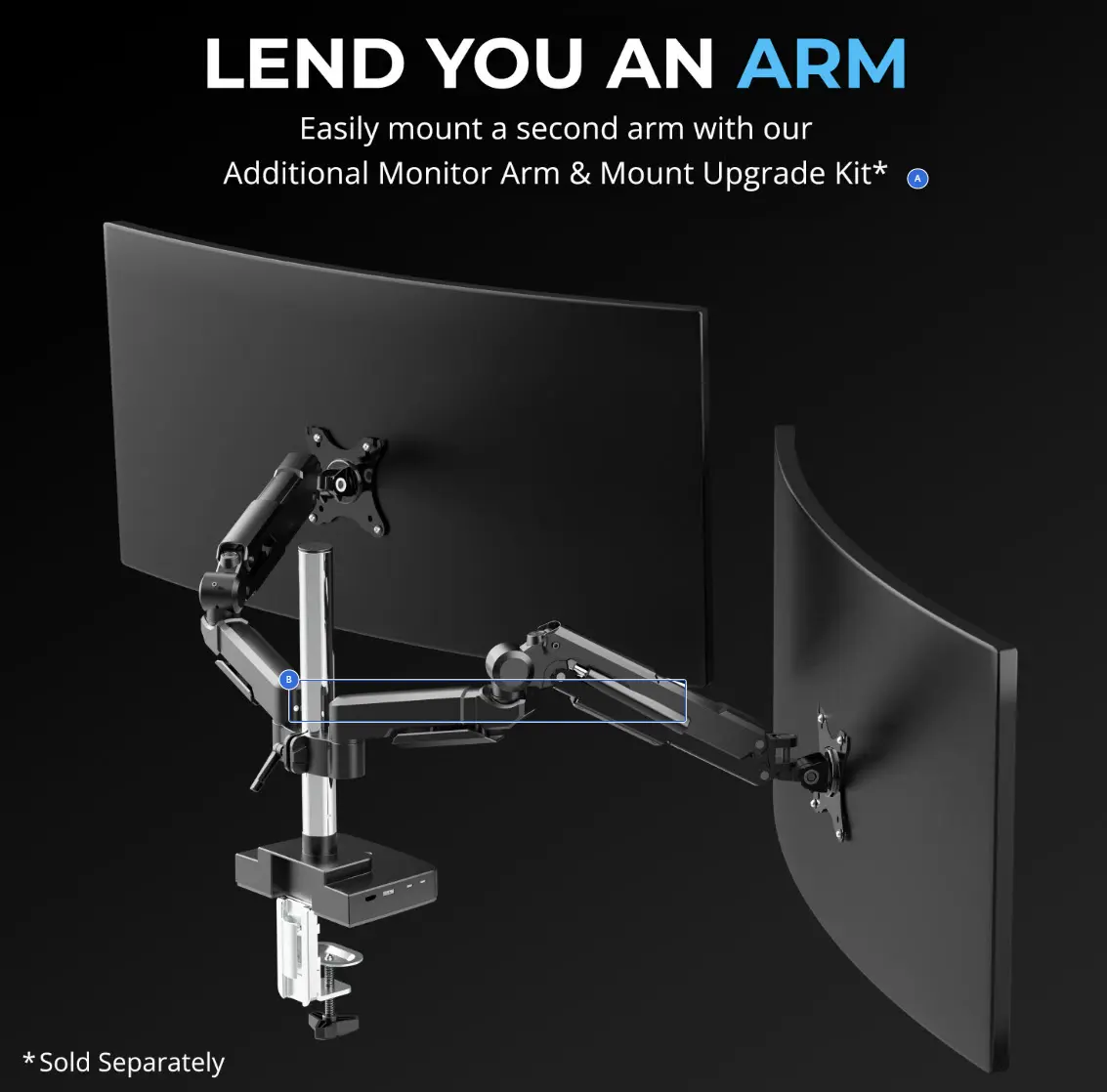

Lend You An Arm

SABRENT Additional Monitor Arm & Mount Upgrade Kit (SB-DSAM)

The docking station can be improved. Easily mount a second arm with the Sabrent Additional Monitor Arm & Mount Upgrade Kit (SB-DSAM). As always, please visit our website to register your product and to receive technical support.

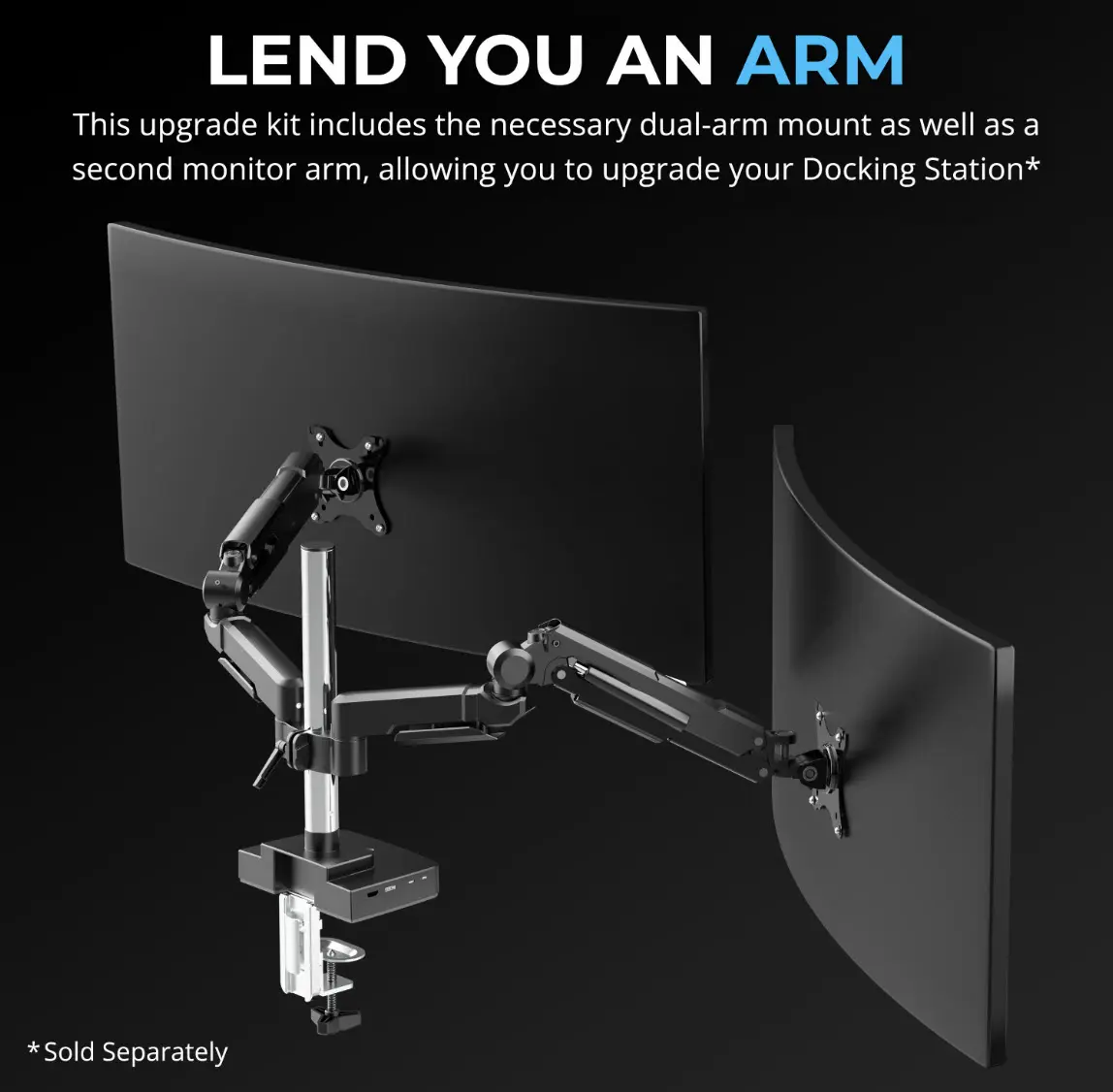

What’s better than a Thunderbolt 4 docking station with a single monitor desk mount? A Thunderbolt 4 docking station with a dual monitor desk mount! Upgrade the essential Thunderbolt 4 Docking Station with Monitor Desk Mount (DS-T4WA) using the Additional Monitor Arm & Mount Upgrade Kit (SB-DSAM) to maximize your productivity with a multi-display setup. This upgrade kit includes the necessary dual-arm mount as well as a second monitor arm, allowing you to easily upgrade your new or existing Docking Station. Get the extra screen real estate and display flexibility you need for your workflow with this easy-to-install Upgrade Kit.

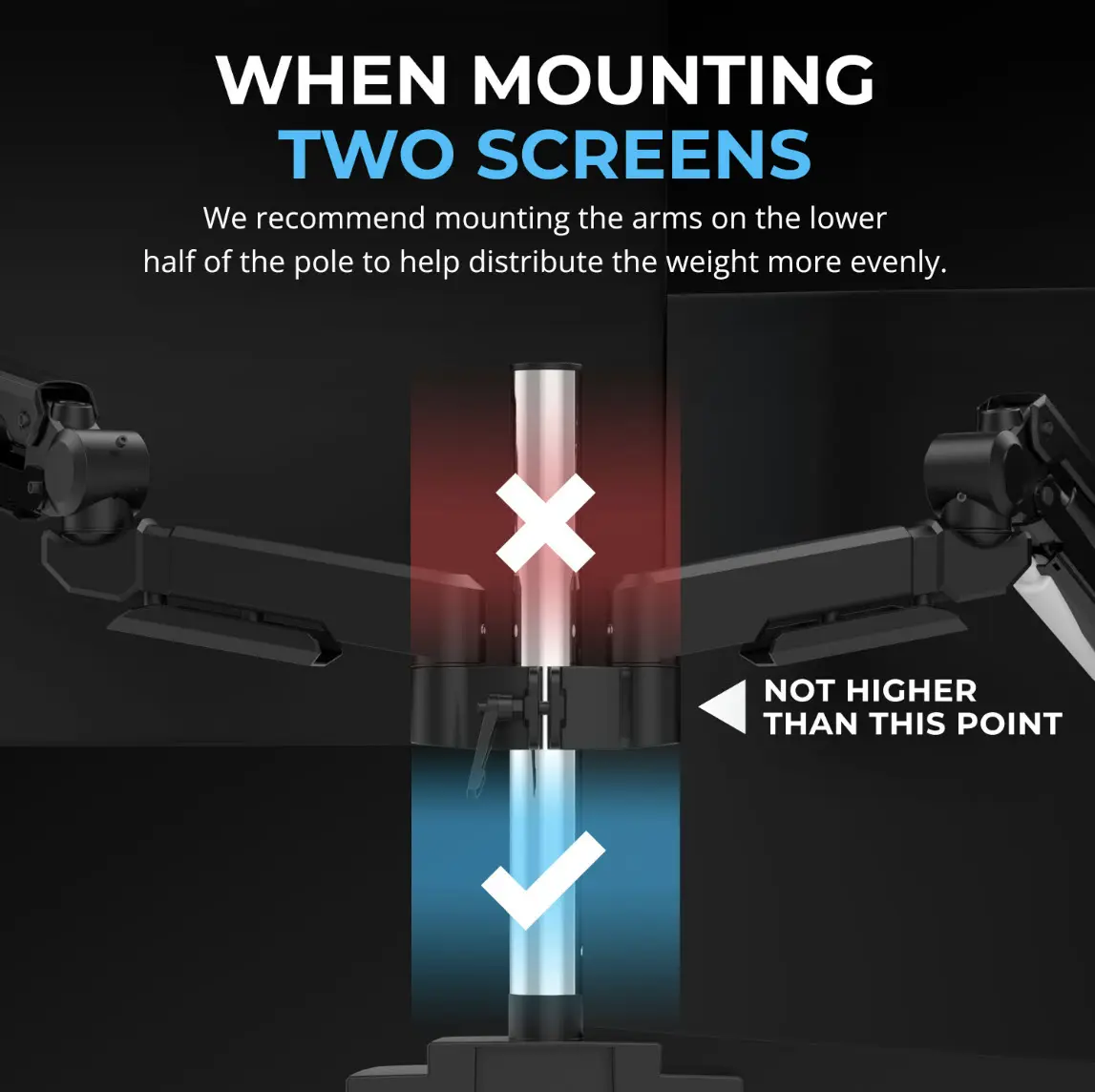

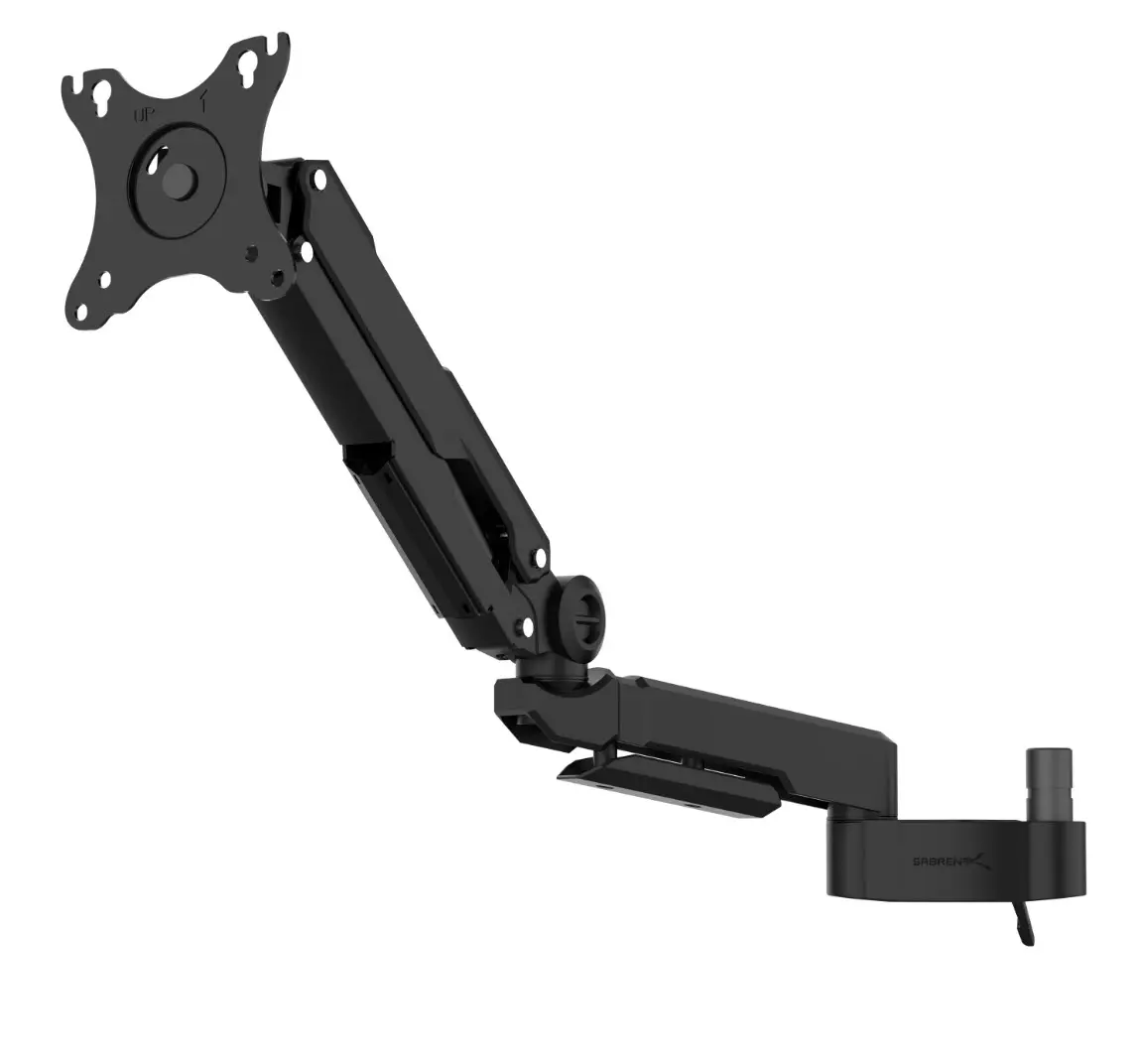

Have a dream multi-display setup in mind? Achieve it with fully-maneuverable arms that are located conveniently above our original, full-featured TB4 docking station. The monitor arm plate is compatible with the standard VESA 75/100 mounting patterns and each arm can support a monitor or other display up to 32” in size and up to 10kg/22lbs in weight. The arms are articulated with a wide range of motion including a 360-degree swivel, 90- to -45-degree tilt, and +/- 90-degree rotation. The dual-arm mount on the gas-lift also supports vertical positioning from 0 to 650mm for maximum flexibility to meet your particular spatial needs.

Everything You Need:

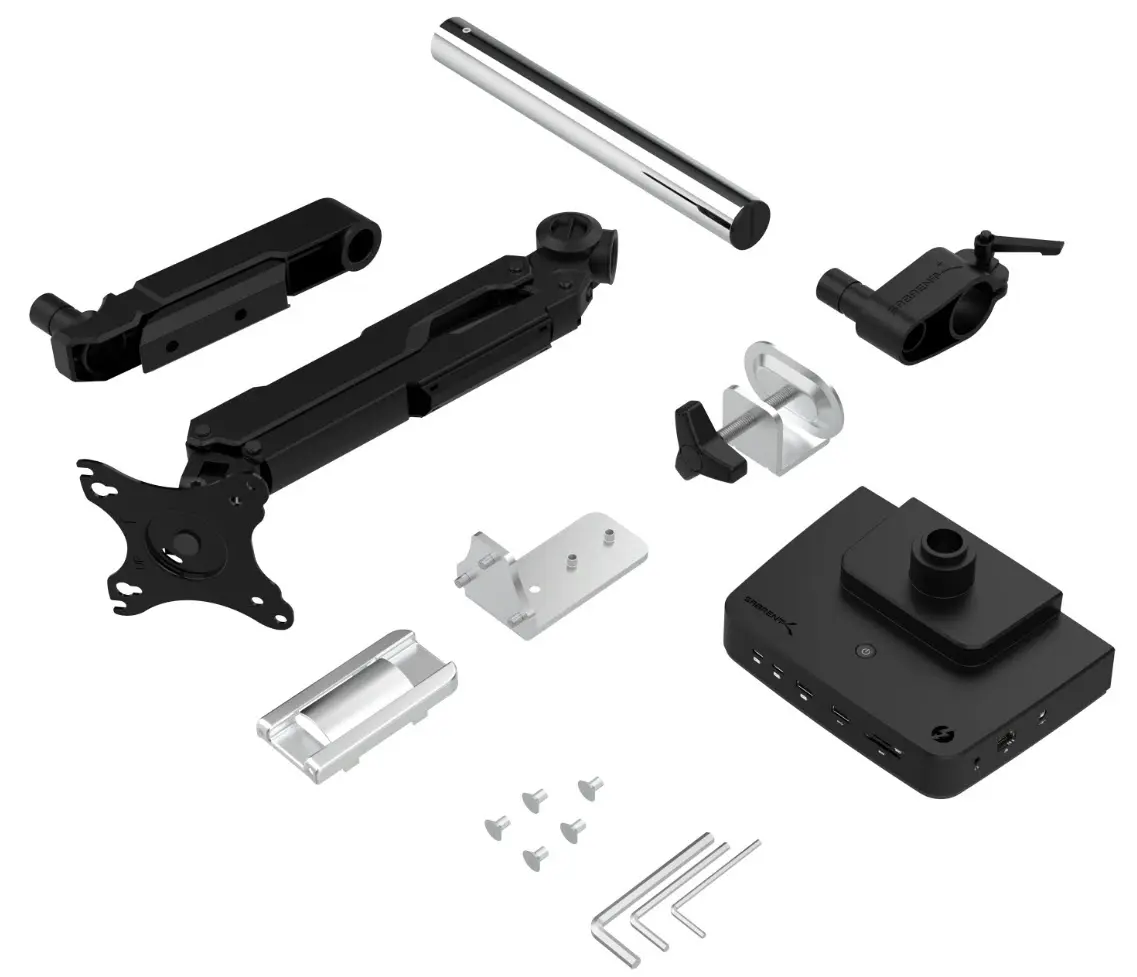

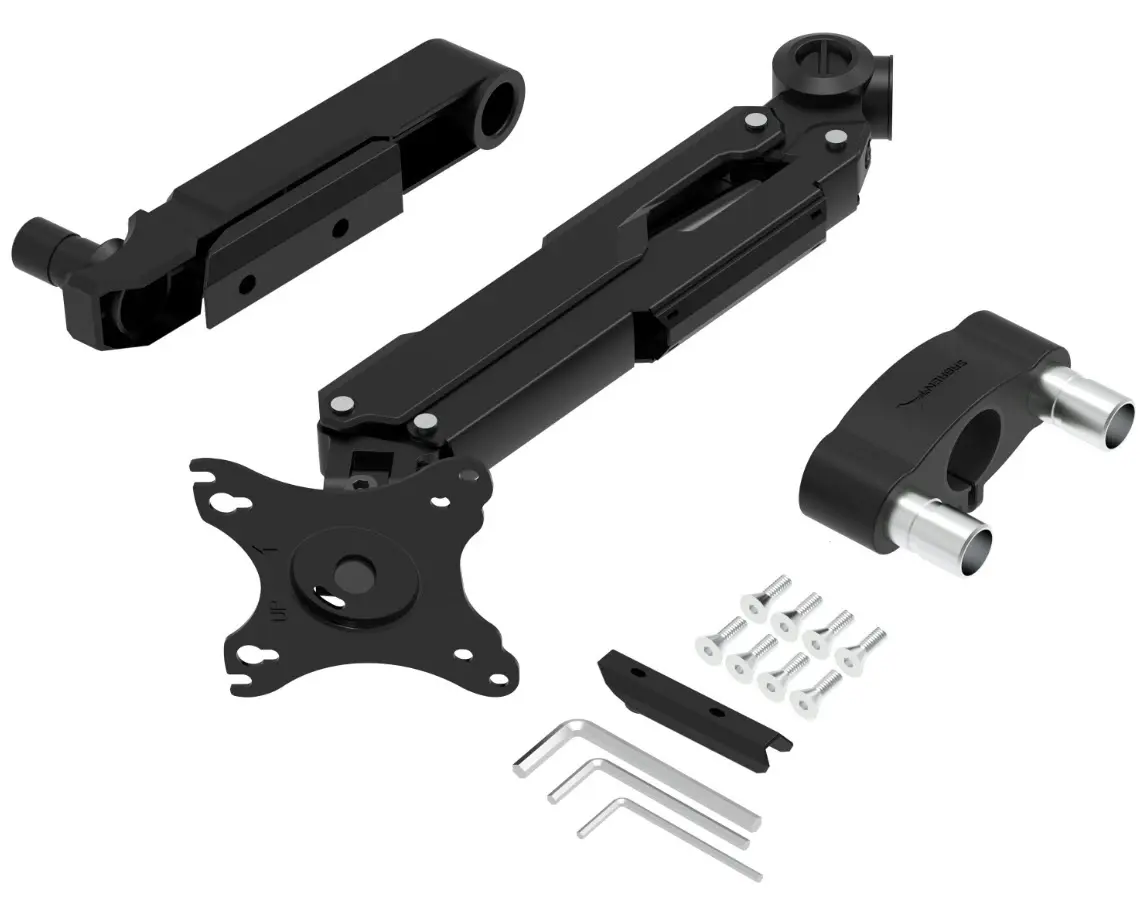

The Upgrade Kit includes everything you need to easily upgrade your Thunderbolt 4 Docking Station. Use the existing docking station with the new dual-arm mount and second arm to conveniently run two displays simultaneously.

Arrange It Your Way: Move it when you need it. The gas-lift arm mount and wide-motion arms allow for a wide degree of freedom. Enjoy vertical positioning from 0-650mm, a per-arm 360-degree swivel, 90- to -45-degree tilt, and +/- 90-degree rotation.
