New 3DMark Opacity Micromap feature test

A new feature test for 3DMark, Sponsored by MediaTek

(Auszug aus der Pressemitteilung)

Today we’re releasing the new Opacity Micromap feature test as a free update to 3DMark for Android.

Anzeige

The 3DMark Opacity Micromap feature test was developed in partnership with MediaTek. This test supports any Android device with an SoC supporting the Vulkan VK_EXT_opacity_micromap extension.

At the time of this feature test’s release, MediaTek’s Dimensity 9400 is the only SoC available to consumers that currently supports this API extension on Android.

Opacity Micromaps improve raytracing performance for geometry that use a technique called alpha testing – using alpha map textures with only fully opaque and fully transparent areas. Alpha testing is commonly used by game developers for more efficiently rendering objects with lots of fully transparent parts, such as foliage or wire fences.

With Opacity Micromaps, graphics hardware can reduce the overall raytracing workload for these objects by more efficiently identifying regions of geometry that are either fully opaque or transparent. This means certain shader calculation steps can be skipped for these regions, improving raytracing performance for scenes featuring alpha-tested geometry.

3DMark Opacity Micromap feature test

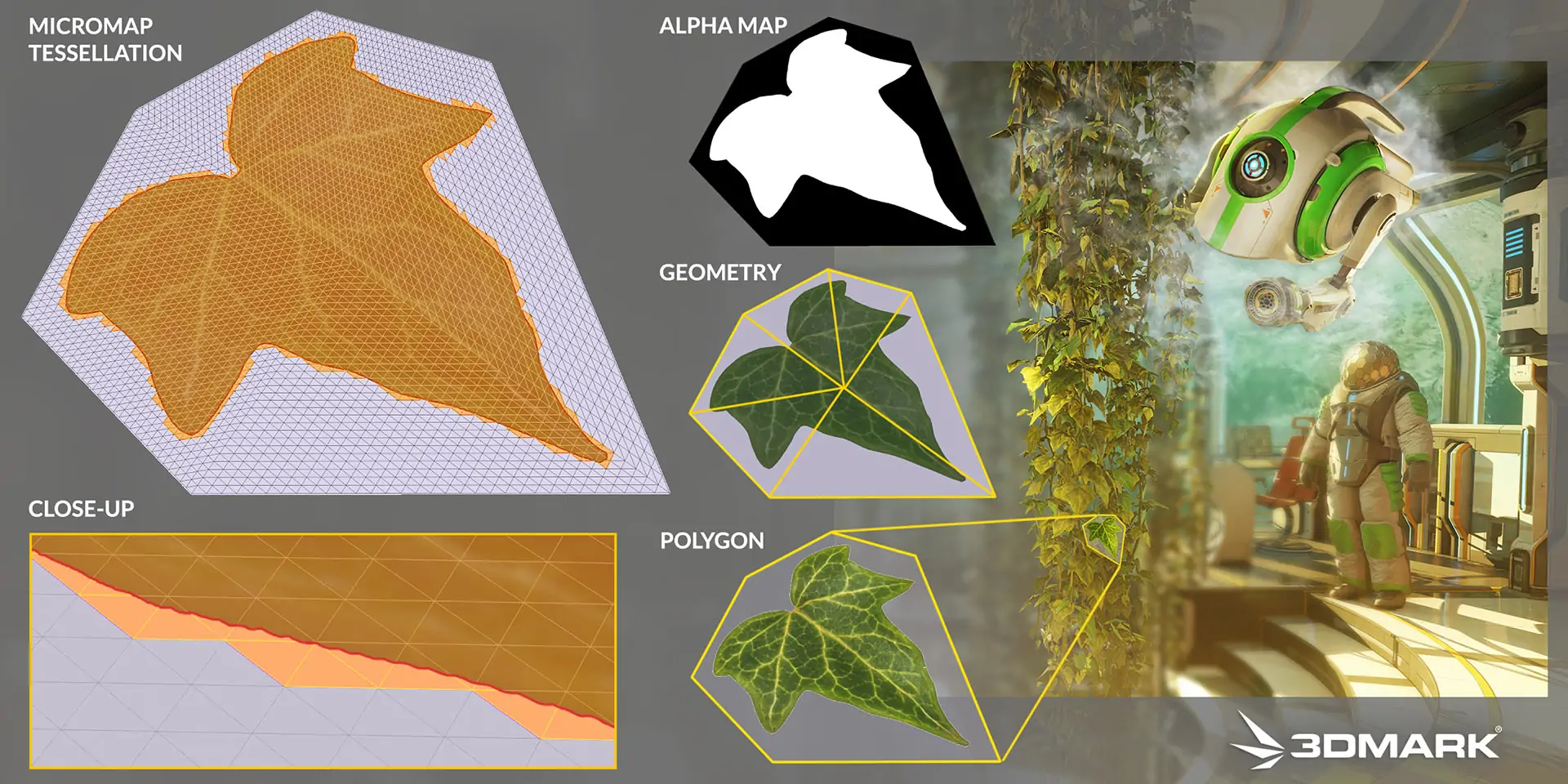

The below image shows how a micromap tessellation is generated using the alpha map and foliage geometry in the 3DMark Opacity Micromap feature test. This micromap is stored in a compressed form alongside the geometry mesh and is only used for raytracing.

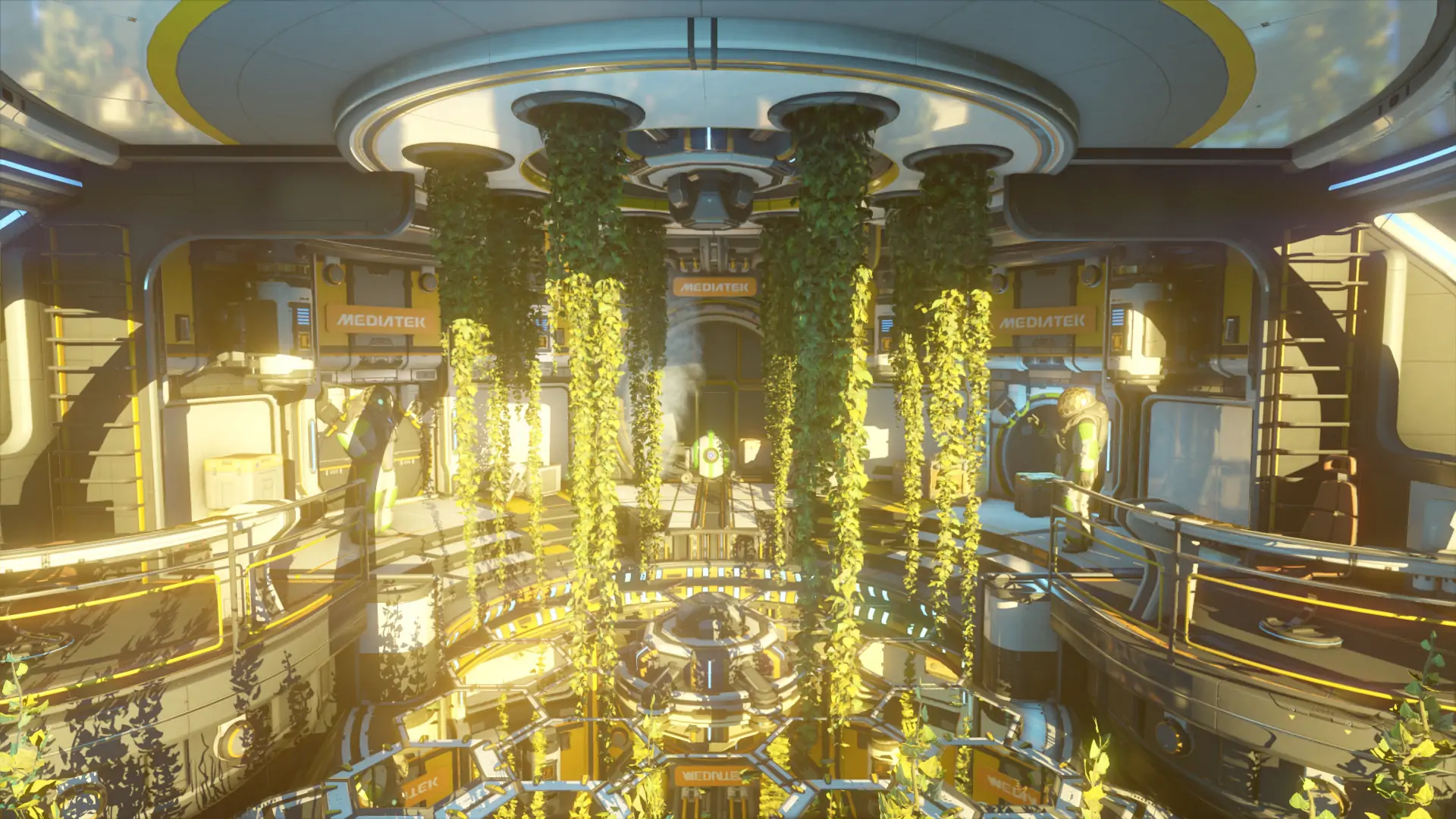

In the feature test, Opacity Micromaps are used for the hanging foliage in the scene. In our implementation, we maximize the performance benefits of Opacity Micromaps by using them to skip ray query hit candidates and their in-shader alpha testing entirely, with minimal impact to overall image quality.

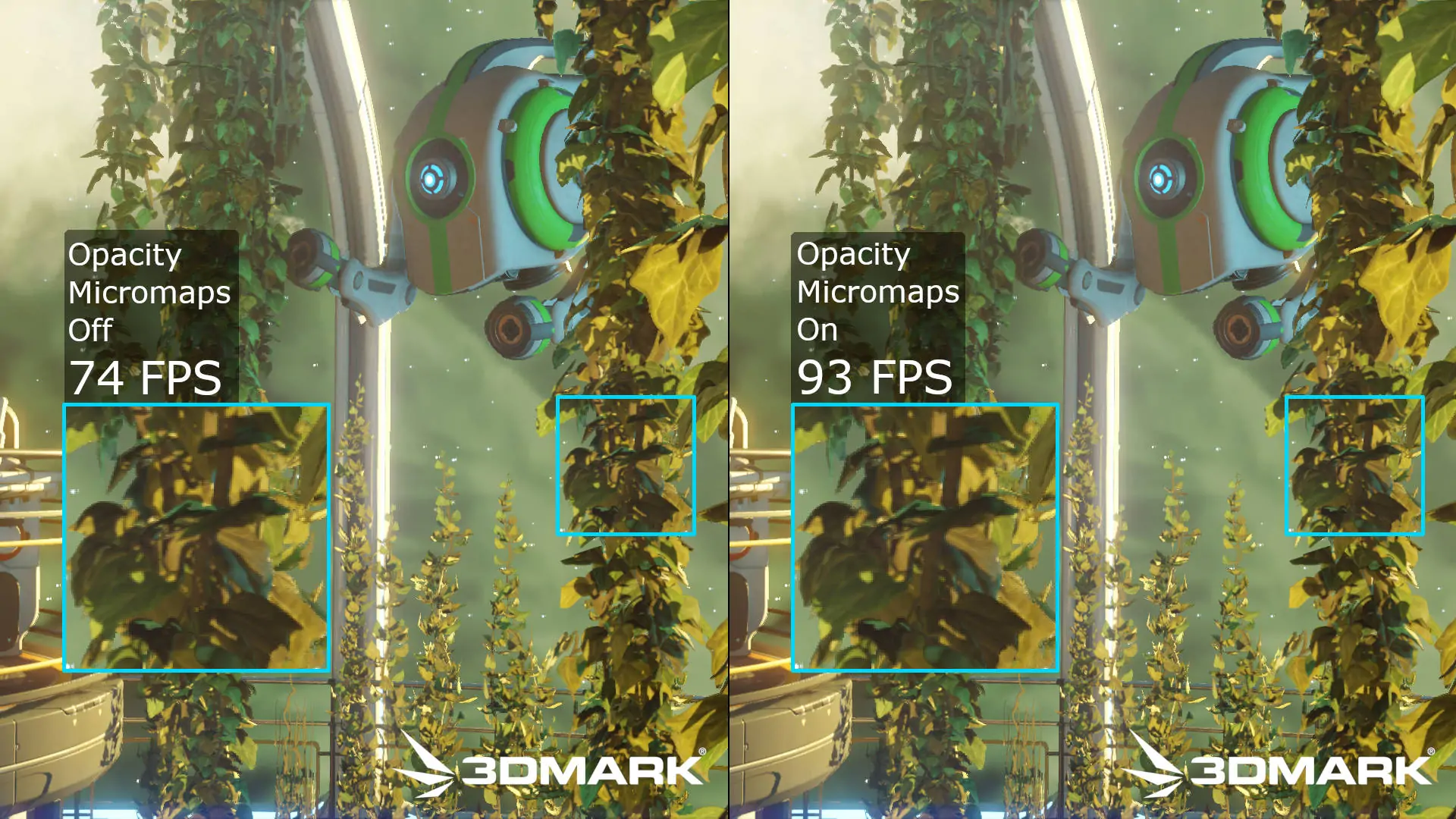

Results supplied by MediaTek from an android device using a MediaTek 9400 SoC

Available Now

You can run the 3DMark Opacity Micromap feature test in 3DMark for Android, available for free on the Google Play Store. Please note that this test is for demonstrating the performance benefits of Opacity Micromaps and is not a device benchmark.

This feature test requires an Android device that supports the Vulkan VK_EXT_opacity_micromap extension, such as devices with the new MediaTek Dimensity 9400 SoCs.
